Short answer: there is no universal number for every LiFePO4 battery. The maximum is the parallel limit published for the exact battery model. Vipboss specifies a maximum configuration of 4S4P for its 12V 105Ah Bluetooth LiFePO4 battery, so a 12V bank can use up to four identical batteries in parallel (4P). Four batteries produce a nominal 12.8V, 420Ah, 5,376Wh bank.
The number you should install may be lower. It must satisfy both your runtime and current needs without exceeding the model's four-battery parallel limit.
The answer in one table
For identical Vipboss 12.8V 105Ah batteries connected in parallel:
| Batteries in parallel | Bank voltage | Bank capacity | Nominal stored energy |
|---|---|---|---|
| 1 | 12.8V | 105Ah | 1,344Wh |
| 2 | 12.8V | 210Ah | 2,688Wh |
| 3 | 12.8V | 315Ah | 4,032Wh |
| 4 | 12.8V | 420Ah | 5,376Wh |
Parallel connection increases amp-hours and watt-hours; it does not increase voltage. If the equipment requires 24V or 48V, adding more batteries in parallel will not create that voltage. You need a manufacturer-approved series or series-parallel design instead.
Maximum allowed and number needed are two different answers
Use these two calculations:
maximum allowed = the model's published parallel limit
number needed = round up(required battery-side watt-hours / rated watt-hours per battery)
Your planned count works only when:
number needed <= maximum allowed
For the Vipboss battery, each unit is rated at 1,344Wh and the published configuration limit is 4P. Suppose an inverter must deliver 1,000W for 2.5 hours and you use 90% as a planning assumption for inverter efficiency:
- Load energy:
1,000W x 2.5h = 2,500Wh - Battery-side energy:
2,500Wh / 0.90 = 2,778Wh - Battery count:
2,778Wh / 1,344Wh = 2.07 - Round up: three batteries
Three is below the four-battery limit, so it passes the capacity-and-count check. It is not yet a complete system approval: temperature, usable state of charge, battery age, inverter surge, continuous discharge limits, and wiring losses can all reduce real runtime. Add the reserve required by the product documentation and your application rather than treating nominal watt-hours as guaranteed output.
If the calculation produced five batteries, five would not be a valid 5P installation for a model limited to 4P. The practical options would be to reduce the energy requirement, recharge sooner, use a larger-capacity battery, or move to another manufacturer-approved system design.
Check current demand as well as runtime
Energy answers “how long?” Current answers “can the bank run the load?” A bank can contain enough watt-hours and still be unsuitable for a large inverter or motor.
Before choosing the final count, compare the load's continuous and surge demand with all of the following:
- Each battery's documented continuous and peak discharge limits
- The BMS limits and any communication requirements
- The inverter's input-current and surge specifications
- The ratings of the cables, terminals, busbars, disconnects, and fuses
- The charger's output and the battery's permitted charging current
Do not multiply a BMS label by the battery count and assume the result is automatically available. Batteries may not share current perfectly, and every connection and protection device has its own limit. Use the complete-bank values and wiring method approved by the manufacturer.
Only parallel batteries that belong in the same bank
“Both are 12V LiFePO4” is not enough. Use batteries the manufacturer approves together, and verify:
- Same chemistry, nominal voltage, model, and capacity
- Similar age, condition, and operating history
- Voltage matched within the range specified before connection
- Approved series/parallel combination
- Equal-current wiring layout, including the specified cable sizes and lengths
- Correct battery-level and main-bank overcurrent protection
Battery-pack safety guidance also recommends reviewing the manufacturer's technical documents and using cells of matching size, age, and history. See the Oregon State University lithium battery safety and handling guide.

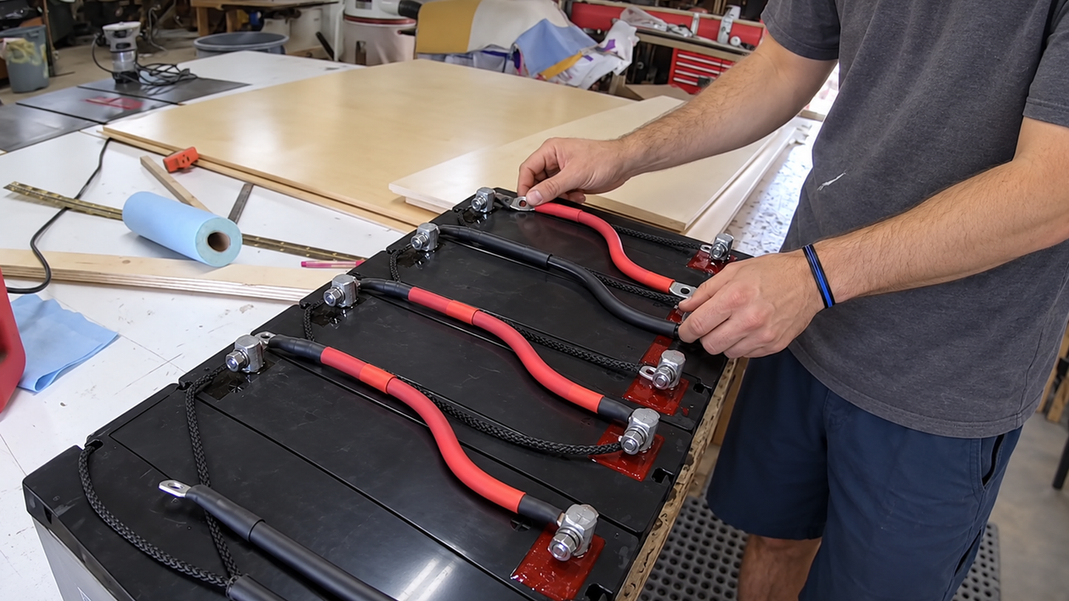

For multiple batteries, follow the product's approved busbar or balanced-connection layout. Unequal cable resistance can cause one battery to do more work than the others even when all batteries are the same model.
A 60-second decision checklist
- Find the model limit. If the manual does not state a parallel count, ask the manufacturer; do not invent one from a different 12V battery's manual.
- Confirm system voltage. Parallel batteries retain the voltage of one battery.
- Calculate runtime capacity. Convert the load and runtime to battery-side watt-hours, divide by watt-hours per battery, and round up.
- Check the result against the limit. For this Vipboss model, the result must be four batteries or fewer in a 12V parallel bank.
- Validate current and charging. Check continuous load, surge load, charging current, BMS, inverter, cables, fuses, busbars, and disconnects as one system.
- Match and wire the batteries correctly. Use approved batteries, matched voltage, balanced connections, and the specified protection.
For the battery discussed here, the headline answer is therefore up to four in parallel. Your correct installation count is the smallest number that meets the runtime and current requirements—provided that number is no greater than four and the complete system follows the current product manual.
