Short-circuit protection detects an unintended low-resistance path at a battery charger's output and quickly limits or shuts off the charging current. This prevents the charger from continuously feeding the fault, helping reduce overheating and damage to the charger, cables, and connectors. Depending on the model, the charger may remain off, retry automatically, or display a fault indicator. The feature protects the charger's output, not the entire battery circuit, so the cause of the short must be corrected before charging resumes.
What the charger does when it detects a short circuit
A short circuit gives current an unintended path that bypasses the normal charging load. This can happen when exposed conductors touch, a connector is damaged, or conductive material bridges the positive and negative sides.
The charger monitors its output for an abnormal electrical condition. Its protection circuit may then reduce the current sharply or switch the output off. This helps keep the charger from continuously feeding the fault.
The exact response depends on the charger. It may:
- shut down until AC power is removed and restored;
- check periodically to see whether the short has cleared;
- hold the output at a limited current; or
- display a fault light while keeping the output disabled.
The feature should activate automatically. Do not test it by intentionally connecting the output leads together.
What short-circuit protection does not guarantee
Short-circuit protection reduces one kind of fault current; it does not make the whole charging system fault-proof.
It does not protect every part of the battery circuit. A connected battery is an energy source of its own, so it may continue feeding a short in the battery cable or downstream equipment even after the charger turns off. Charger protection therefore does not replace sound wiring, covered terminals, intact insulation, or suitable battery-side circuit protection.
It also does not correct an incompatible charger. Battery chemistry, charging voltage, current, connector, and polarity still have to match. Reverse-polarity, over-temperature, and overload protection are separate functions unless the charger specifically includes them.
For a compatible 36V LiFePO4 battery, the Vipboss 36V 25A lithium battery charger delivers a specified 43.8V, 25A output and combines short-circuit protection with safeguards against reverse connection, over-temperature, and overload. This gives the charging system protection against several common charger-side faults in one unit.
If a fault returns or a connection appears damaged, do not keep resetting the charger. Treat the fault as unresolved until the cause has been addressed.
Frequently asked questions
Will a short-circuit-protected charger reset automatically?
Some models retry after the fault clears, while others stay off until AC power is cycled or require service. Follow the charger manual and do not repeatedly reset it while the cause of the short remains unknown.
Can I test short-circuit protection by touching the charger leads together?
No. Intentionally shorting the output can create sparks, heat, connector damage, or an unsafe battery-side fault. Protection should be verified only through the manufacturer's approved test procedure.
Does charger short-circuit protection protect the battery cables too?
Not necessarily. The battery can supply its own fault current into a cable or downstream short even after the charger shuts off, so suitable wiring, covered terminals, and battery-side circuit protection are still required.
What should I check after a charger reports a short circuit?

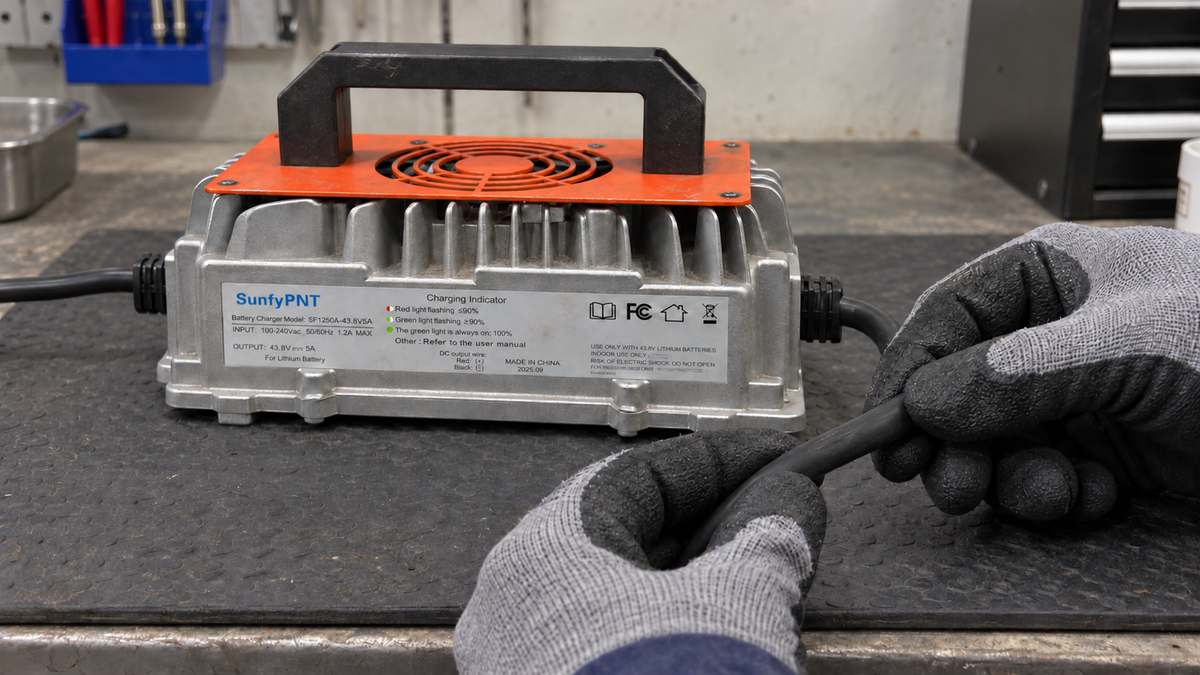

Disconnect power and inspect the output cable, connector, insulation, terminals, and battery wiring for exposed conductors, conductive debris, crushing, corrosion, or melted material. Reconnect only after the cause has been identified and corrected.
Is a short-circuit fault the same as reverse polarity or overload?
No. These are different abnormal conditions, even though a charger may use the same fault light for several of them. Use the model's instructions and verify wiring, polarity, compatibility, and load before deciding what triggered the protection.
