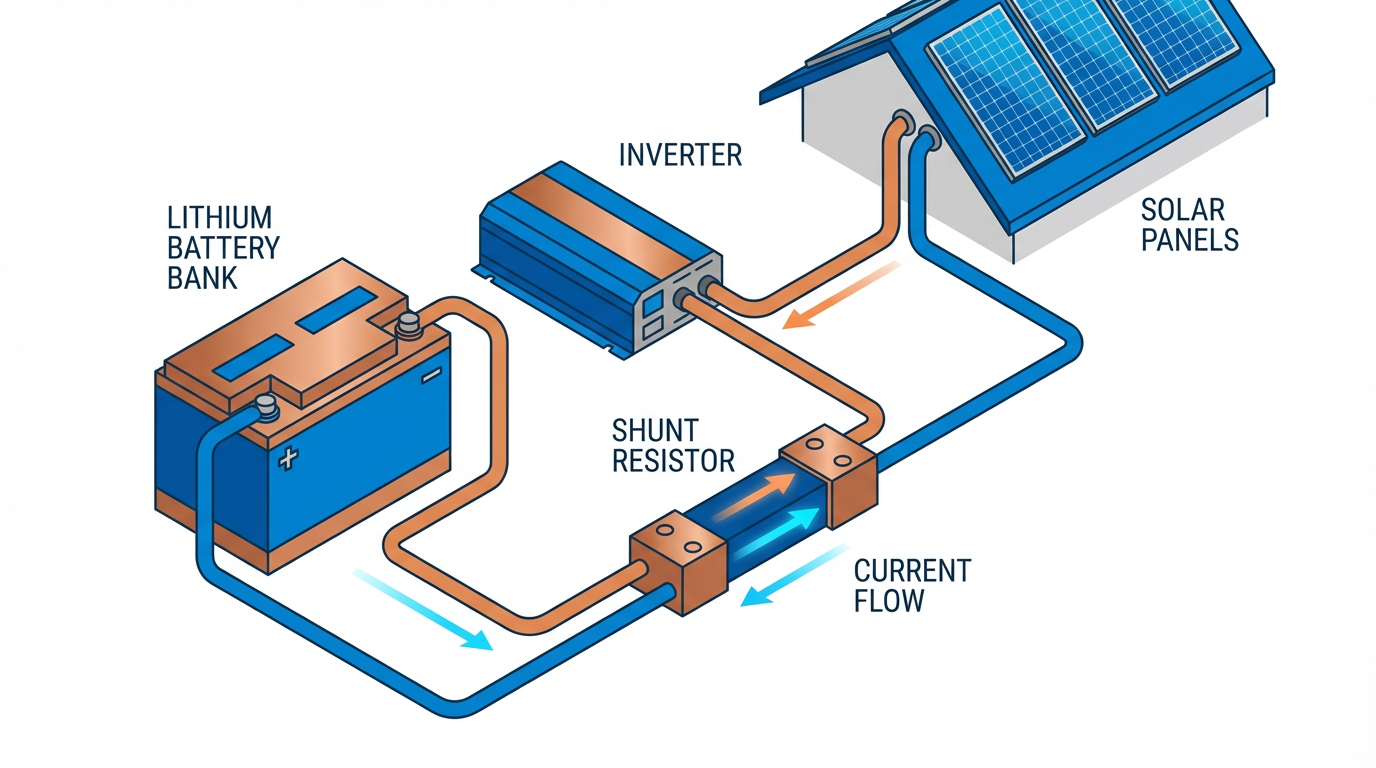

Install the Shunt on the Positive or Negative Side? The Most Common Rookie Monitoring Mistake

In most lithium off-grid battery monitors, the main shunt belongs in the negative (return) cable so every charge and load path passes through it and is measured correctly.

You wire up your new lithium bank, flip the disconnect, and the monitor insists your "full" batteries are half empty or drawing amps when everything is switched off. Over and over in retrofits, simply moving a misplaced shunt and catching a few bypassed cables has turned nonsense readings into accurate state-of-charge tracking and stopped nuisance low-voltage shutdowns. This guide shows where the shunt should sit, when a positive-side install is justified, and how to fix the most common monitoring mistakes without tearing your system apart.

What the Shunt Really Does in a Lithium Off-Grid System

A shunt resistor is a very low-value, high-power resistor installed in series with your battery circuit so that the tiny voltage drop across it can be used with Ohm's law to calculate current. A good shunt resistor is designed with low resistance, tight tolerance, and low inductance so it adds minimal loss while still giving a clean, proportional millivolt signal across a wide current range. In most off-grid gear that signal is only around 50 to 100 millivolts at full load, which is why it must be handled carefully and usually amplified before a monitor or ADC reads it.

Industrial DC shunts are often calibrated so that a fixed output, such as 50 or 75 millivolts, corresponds to their rated current, which makes swapping meters and shunts straightforward when ratings match. A DC shunt typically carries almost all of the system current while your meter or battery monitor only "sees" the tiny voltage between the dedicated sense screws, not the main power lugs. That architecture lets you monitor very large battery currents accurately without routing those heavy currents through delicate electronics.

In lithium systems, this shunt becomes the "truth meter" that your battery monitor uses to count amp-hours in and out. External shunt-based monitors are still important when a lithium bank's internal BMS cannot share detailed state of charge with the inverter-charger or solar controller, which is still common outside fully integrated BMS/BMU platforms in larger systems. In that case the shunt is the only way your system knows whether the bank is truly at 100% or quietly drifting toward a BMS trip.

Positive vs Negative: What Most Battery Monitors Expect

Most off-grid battery monitors and DC shunt modules are built for low-side sensing, meaning they expect the shunt to sit in the negative return path close to the battery. Low-side placement keeps the measurement's common-mode voltage near ground, which simplifies the amplifier and lets non-isolated monitoring electronics operate safely while still achieving high accuracy. Guidance on measuring current using shunt resistors and on wiring DC shunts consistently highlights low-side placement as the default for many power-electronics and energy-storage designs.

A key reason is that placing the shunt on the negative side usually avoids exposing the meter or ADC to the full battery voltage plus switching transients. When the shunt is on the positive side, the measurement inputs must ride at battery potential and often need isolation or specialized high-side current-sense ICs, which is typical in automotive modules but not in many generic off-grid monitors. Designs that favor simplicity, such as external battery monitors or Arduino-class systems using INA-series current monitors, are often engineered around this low-side assumption, and several practitioners stress checking whether a device is meant for high-side or low-side sensing before committing to a layout in projects interfacing large external shunts.

Low-Side (Negative) Shunt: The Default for Off-Grid Lithium Systems

In a typical lithium retrofit or off-grid cabin, the right place for the main shunt is between the battery negative and the rest of the DC negative bus. The battery's single heavy negative cable lands on one side of the shunt, and every other negative connection - distribution bus, inverter, DC panel, solar controller, DC-DC chargers, alternator returns, and chassis bonds that carry load current - must land on the other side. A primary shunt in a solar battery system should also be mounted as close as practical to the battery, with only protective devices, such as a main fuse or breaker, between the cell stack and the shunt so that all charge and discharge currents are captured.

This configuration turns the shunt into the single "gate" all current must pass through. The battery monitor then connects with light-gauge sense wires to the shunt's dedicated voltage sense screws, not to the main power bolts, which avoids adding parasitic resistance that would degrade accuracy. DC shunt guides emphasize using proper torque, short twisted or shielded sense leads, and high-quality ring terminals to minimize contact resistance and noise, all of which support the shunt's role as a precision measuring element rather than just another piece of copper in the negative bus. A carefully wired DC shunt in the negative cable is therefore the straightforward, robust answer for most lithium off-grid installations.

High-Side (Positive) Shunt: A Special-Case Option

There are valid reasons to put a shunt in the positive cable, but they are niche in the context of DIY or small commercial off-grid systems. High-side shunts are useful for catching faults immediately at the source, such as in automotive power rails or industrial supplies where the goal is to monitor or trip on any abnormal current drawn from the positive bus. In such systems the measurement circuits must handle the full common-mode voltage of the supply and any fast transients, often by using dedicated high-side current-sense amplifiers or isolated measurement front ends that are designed for this role. Application notes on shunt resistor current measurement make that distinction clear when comparing high-side and low-side sensing.

Integrated current monitors like the INA226 and multi-channel devices such as the INA3221 are often advertised as high-side monitors precisely because they can tolerate elevated common-mode voltages and let designers place the shunt in the positive lead. Community experience with these devices in projects that interface large external shunts shows that high-side layouts work well when the IC, PCB, and shunt are all chosen with that in mind. However, forcing a generic battery monitor that was engineered for a negative-side shunt into a positive-side configuration is a recipe for poor readings or outright damage.

For most lithium retrofits, camper vans, boats, and cabins, sticking to the negative-side shunt that the monitor expects is the right call. Reserve positive-side shunts for hardware specifically designed and documented for that topology.

The Rookie Mistake: Bypassing the Shunt or Putting It on the Wrong Side

The most common monitoring failure in the field is not a bad shunt or a fancy firmware bug; it is wiring that lets significant current avoid the shunt altogether. That can happen whether the shunt is on the positive or negative side, but it shows up most often when a low-side monitor is miswired. For example, if the inverter's negative cable is bolted directly to the battery negative post while the shunt is only feeding a distribution panel, the monitor logs lighting and small DC loads but completely misses the inverter's draw. The state of charge looks great on paper right up to the moment the BMS trips under a heavy AC load.

Another common rookie mistake is installing the shunt in the negative cable but leaving alternate return paths, such as a direct chassis bond or a second battery negative to frame connection, on the battery side of the shunt. In that case any load that uses the chassis or shared metalwork as its return path bypasses the shunt, again corrupting the amp-hour count. General guidance on installing an ammeter and shunt emphasizes rearranging the negative wiring so that the shunt sits between the battery and all other negative connections, precisely to avoid these partial paths.

It is also easy to confuse the shunt's main power lugs with its precision sense screws. DC shunt application notes explain that the meter or monitor must be connected only across the sense terminals, not across the power bolts, because those power contacts include extra resistance from cables and joints that distort the measurement. Guidance in shunt resistor design resources and detailed DC shunt wiring explanations both stress that connecting sense leads to the wrong points can introduce large percentage errors in the apparent current, especially at low loads where contact resistance is a significant fraction of the total.

How to Spot and Fix the Problem in an Existing System

You do not need a full redesign to recover from a misinstalled shunt. Start by visually tracing the battery negative: there should be exactly one heavy negative cable on the battery terminal, running straight to the shunt. Every other negative cable in the system should connect to the opposite side of that shunt or to a bus bar that is tied to that side. If you see any large negative or ground strap sharing the battery post directly, that is a red flag for bypassed current.

Next, follow the small sense wires from the shunt to the monitor. They should land on the dedicated sense screws, which are often smaller or marked separately from the main bolts. If those leads are mistakenly clamped under the power lugs, relocate them to the correct hardware. Keeping them short, twisted together, and routed away from noisy high-current cables aligns with best practices described for Kelvin-connected and paralleled shunt layouts, where balanced, low-impedance sense paths are essential to accuracy.

Finally, verify that any chassis ground bond from DC negative lands on the system side of the shunt, not on the battery side, unless your equipment manual explicitly calls for a different arrangement. This ensures that any current returning through the chassis is still seen by the shunt. Once these basic corrections are in place, the monitor's amp-hour count and state-of-charge estimates will begin to line up much more closely with real-world performance.

Wiring and Layout Practices for Rock-Solid Shunt Readings

Clean wiring around the shunt can make as much difference as choosing the right shunt in the first place. DC power-system references on current measurement with shunt resistors point out that lead and contact resistance can be comparable to the shunt itself when its resistance is in the milliohm range. That is why many high-accuracy shunts use four-terminal (Kelvin) designs, where the current-carrying bolts and the sense screws are separate, so that voltage is measured right on the resistive element rather than across bus bar joints.

When multiple low-value shunts are paralleled for higher current handling, experts recommend making separate sense connections to each element and averaging them through precision resistors to avoid layout-induced errors. Practical work on paralleled Kelvin shunt resistors shows that using just one element's sense leads can introduce multi-percent current-reading errors because small differences in PCB trace resistance skew how current shares between shunts. The same principle applies in off-grid builds that use modular or multi-pole shunts: measure where the current actually flows, not where it is mechanically convenient.

On the power side, your main shunt should be mounted in a spot where it cannot be accidentally shorted by tools or loose cables and where the heavy lugs can be torqued properly. Application notes and practical guides on DC shunt installation and solar battery shunt usage stress using adequately sized cable, correct crimping, and periodic inspection or re-torquing to catch any developing hot spots. Because a lithium bank can support very high continuous currents without voltage sag, a loose shunt connection can become a hidden heater long before it becomes an obvious failure.

Sensing electronics matter too. If you are using a separate current-sense IC or amplifier with your shunt, place that device close to the shunt itself and route only the amplified output back to your controller or data logger. Current-measurement design discussions often recommend keeping those differential sense runs very short, tightly coupled, and away from noisy switching edges so that high-frequency noise and PWM artifacts do not corrupt the reading. When combined with low-drift amplifiers discussed in shunt-resistor design literature, this layout approach yields clean, stable numbers even when your inverter or charge controller is hammering the DC bus.

FAQ

Does it ever make sense to put the main shunt on the positive cable?

Yes, but only when the monitoring hardware is explicitly designed for high-side sensing. High-side current measurement is common in automotive and industrial supplies that use specialized front ends or ICs that can tolerate the full supply voltage across their inputs, a configuration described in references on measuring current using shunt resistors. If your battery monitor's manual and labeling assume a negative-side shunt, forcing it into a positive-side position risks both inaccurate readings and overvoltage stress on the monitor.

If my lithium battery has a built-in BMS, do I still need an external shunt?

Many lithium packs with simple or Bluetooth-only BMS hardware do not share detailed state-of-charge or load data with the rest of the system, so an external primary shunt remains the practical way to monitor real-time charge and discharge currents and to trigger smart actions such as generator starts or load shedding. In fully integrated systems where the BMS communicates directly with inverters and chargers, the manufacturer may omit a separate main shunt and rely on internal sensing instead. The key is to check whether your system components are actually exchanging accurate current and SOC information; if not, a correctly placed external shunt on the negative side is still the most straightforward upgrade.

How close does the shunt need to be to the battery?

Closer is better, as long as you can mount it safely and service it. Guidance for both DC shunt wiring and solar battery shunt usage recommends locating the primary shunt very near the battery bank so that the segment of cable between the cells and the shunt is as short and simple as possible. That way, any additional circuits - chargers, inverters, DC panels, and even chassis bonds that carry load current - attach on the other side of the shunt and are fully accounted for.

A properly placed shunt turns your lithium bank from a mysterious black box into a measurable, predictable energy reservoir. Put it on the negative side where your monitor expects it, route every amp through it, keep the sense wiring clean, and your off-grid system will start behaving like a well-tuned instrument instead of a guessing game.
